Industrial Framed Building for Electrical Rooms

BIM Structural Engineering

works_images/industrial-framed-building-for-electrical-rooms-5.webp

works_images/industrial-framed-building-for-electrical-rooms-6.webp

works_images/industrial-framed-building-for-electrical-rooms-7.webp

LOD: 300

Area: -

Disciplines: Structural

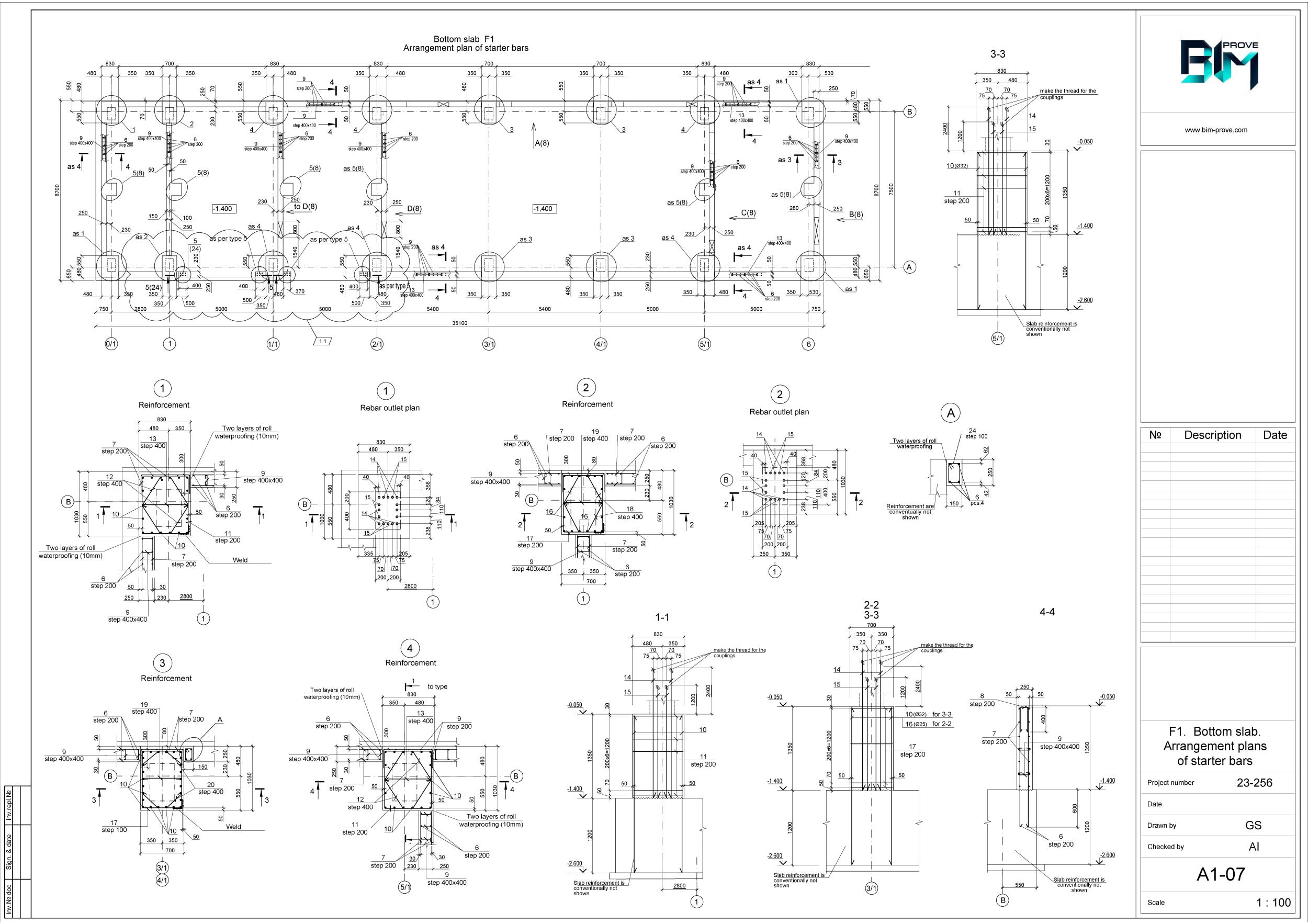

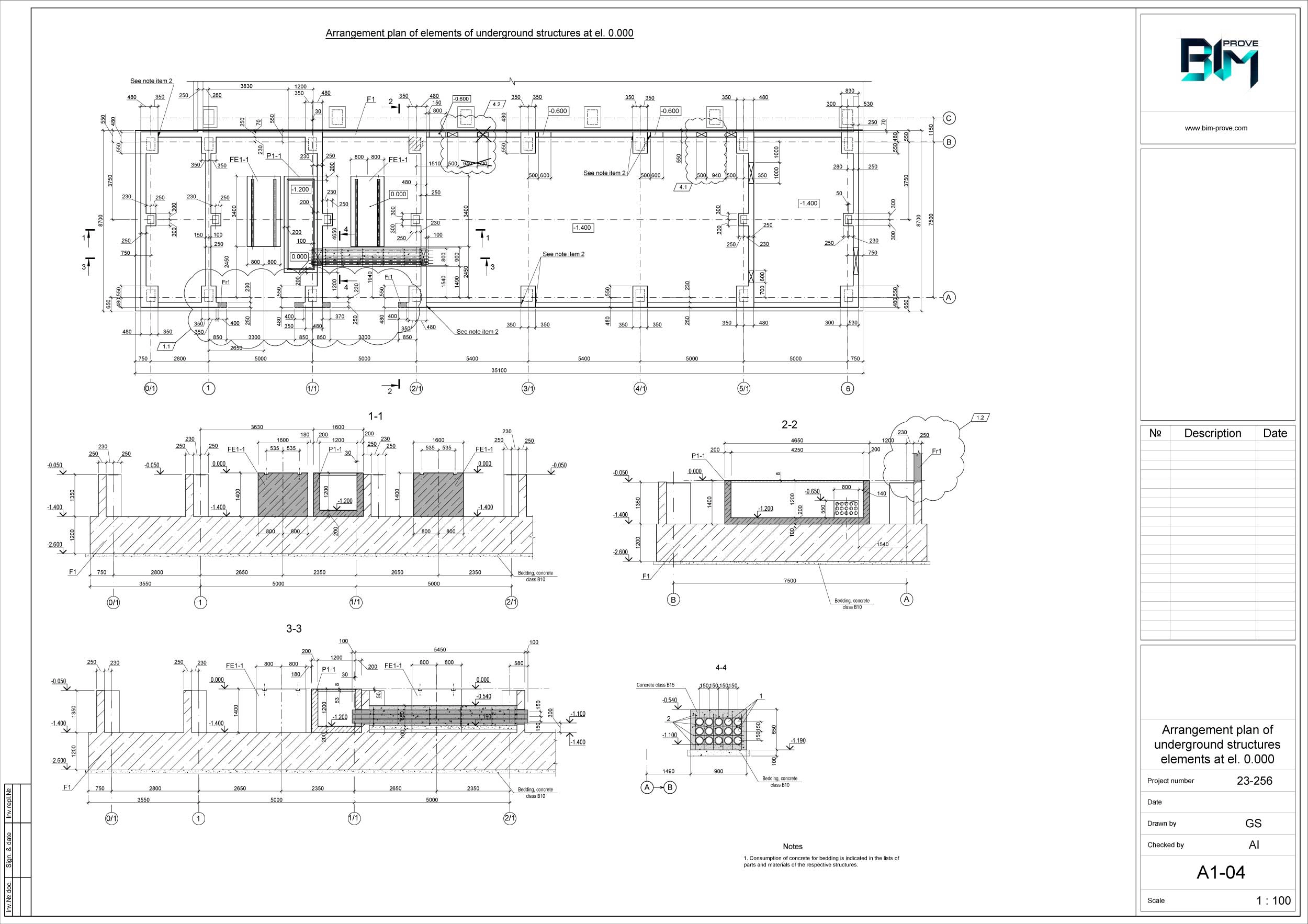

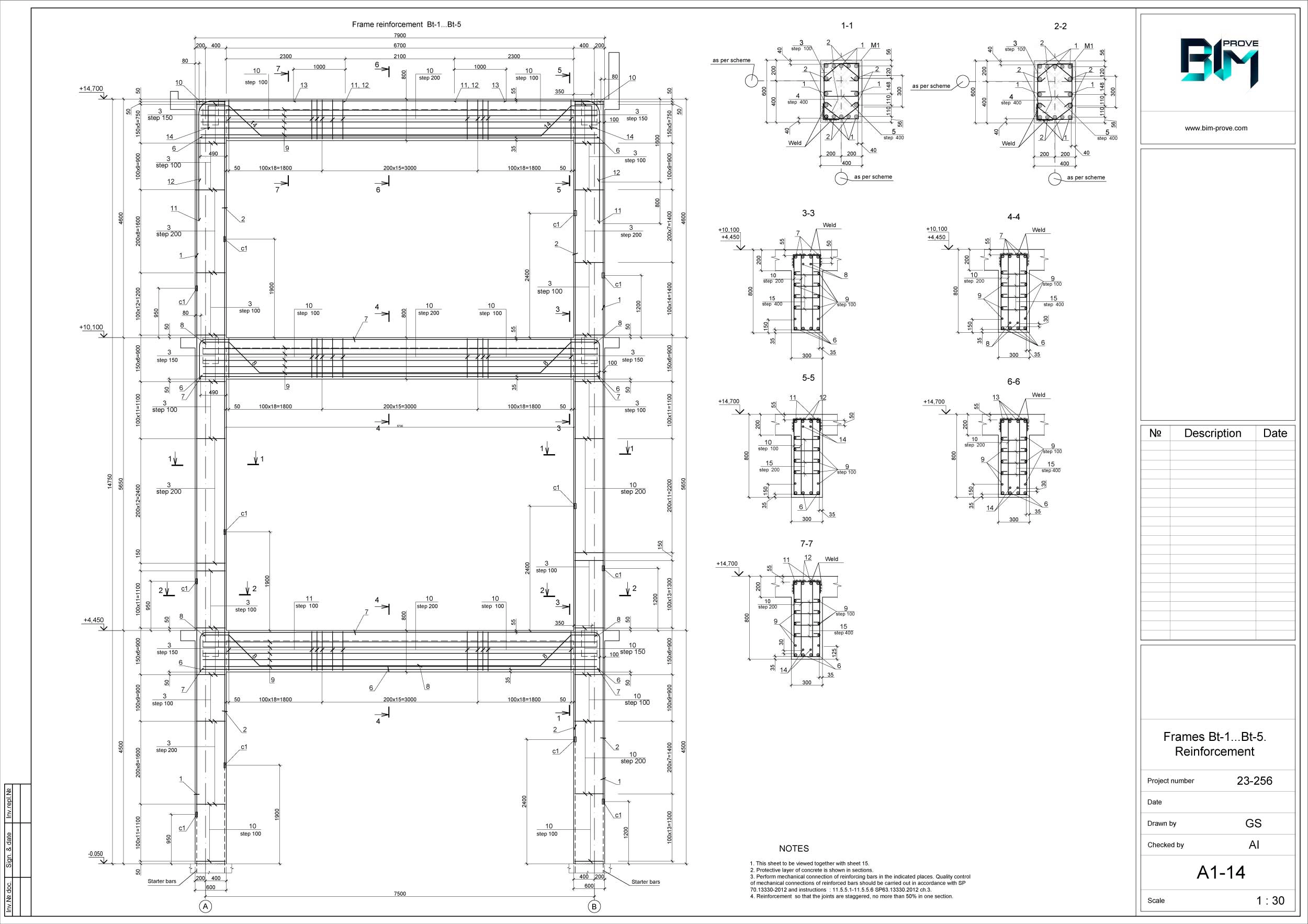

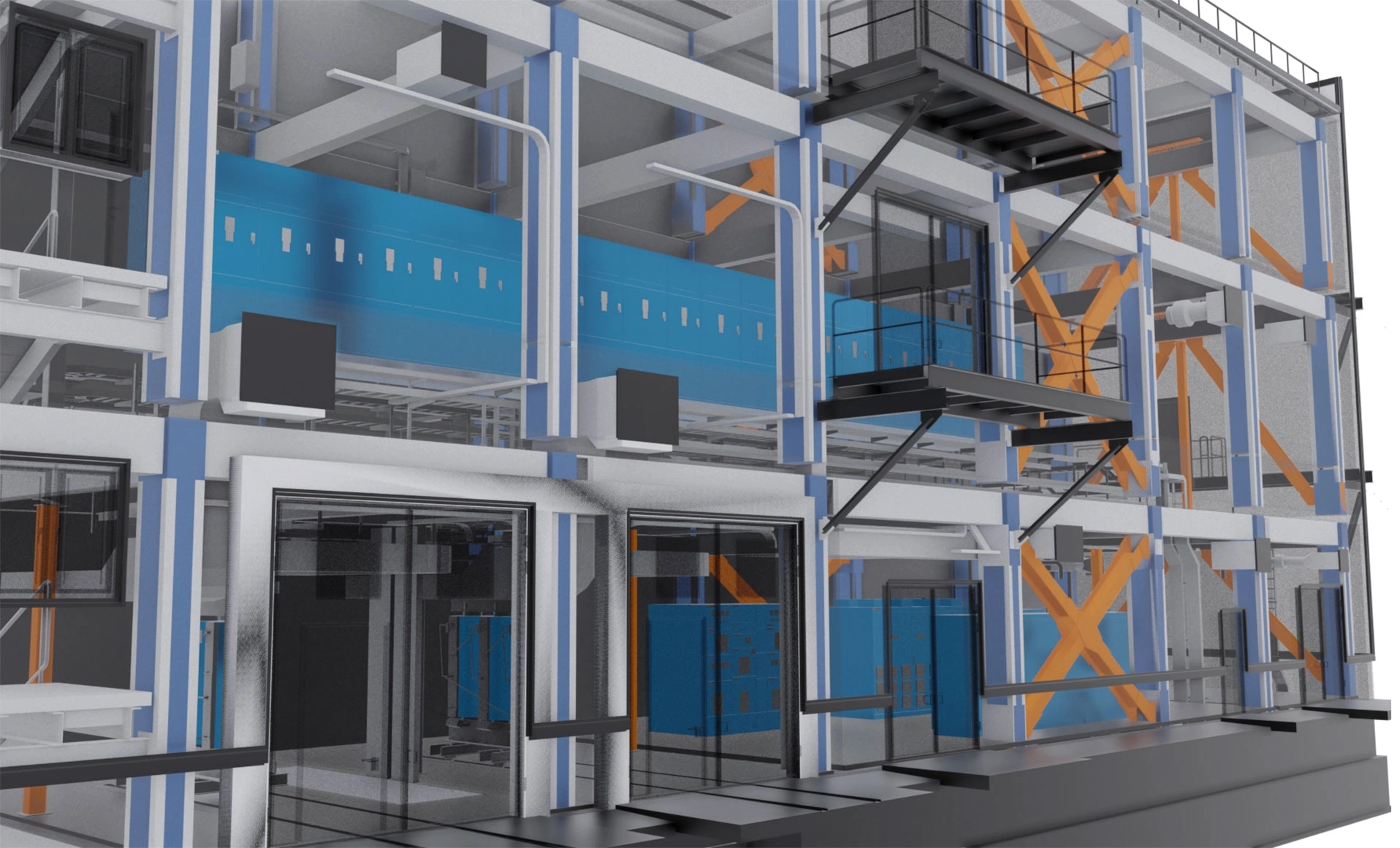

This three-story industrial building is designed to house electrical equipment at a newly constructed metallurgical plant. Located in a seismically active zone with an 8-point seismic rating, the building’s frame utilizes a rigid and braced frame structure, ensuring high stability and operational safety. The brick walls serve solely as enclosures, reducing the risk of damage from seismic forces. The monolithic foundation slab evenly distributes loads, enhancing stability on complex soil conditions. The building is intended for temporary use by maintenance personnel and contains no sanitary or living facilities.
